How to Choose Dunnage Air Bags for Container Cargo Shipping?

Cargo shifting during intermodal transit creates severe operational liabilities. Rejected loads disrupt tight supply chains. Product damage frustrates receivers and damages brand reputation. Falling freight poses severe safety hazards at the receiving dock. Selecting the wrong void fill directly causes these failures. Incorrect materials, improper sizing, or inadequate burst strength lead to rapid bag deflation. This triggers compliance violations with regulatory bodies like the AAR. It compromises overall container integrity during rough transits. You need a rigorous technical framework to evaluate dunnage air bags for container cargo shipping. This process requires analyzing material specifications carefully. You must calculate precise void measurements before loading. You must understand inflation mechanics and pressure limits. You must verify compliance standards to mitigate risk. This comprehensive approach ensures you secure freight reliably across all transit modes.

Key Takeaways

• Material Alignment: The choice between a kraft paper dunnage air bag and polywoven alternatives must be dictated by the container's moisture environment, transit mode, and total load weight.

• Precision Sizing: Accurate measurement of the void gap (width, height, and depth) is the primary determinant of dunnage air bag size; incorrect sizing exponentially increases the risk of cargo shifting.

• Controlled Inflation: Utilizing a specialized dunnage bag inflator with pressure regulation is critical to prevent over-inflation and ensure consistent load-bearing pressure.

• Regulatory Compliance: Selecting Association of American Railroads (AAR) certified bags mitigates liability and ensures acceptance across international ports and rail networks.

The Mechanics of Cargo Securing: Defining Success Criteria

Limitations of Traditional Methods

Traditional cargo securing relies heavily on wood blocking, bracing, and strapping. These rigid methods demand intensive manual labor on the loading dock. Carpenters or dockworkers spend hours cutting 2x4s and nailing them into trailer floors. This process slows down throughput significantly. Furthermore, rigid methods often fail under dynamic transit stress. Rigid materials cannot absorb continuous vibration effectively. They snap, splinter, or loosen during severe impacts like railcar coupling or hard braking. Pneumatic void fill offers a highly efficient alternative. It replaces static resistance with dynamic shock absorption, cutting loading times from hours to minutes.

Kinetic Energy Absorption

A properly deployed cargo securing dunnage air bag absorbs kinetic energy actively. It functions as a dynamic shock absorber inside the container. When a truck hits a pothole or a train changes tracks, the load shifts. The internal bladder of the bag compresses slightly during these sudden load shifts. It expands immediately when the pressure releases. This continuous micro-adjustment cushions the load constantly. It prevents rigid impacts that shatter pallets, crush corrugated packaging, or damage the internal products.

Performance Metrics

You must evaluate specific performance metrics to guarantee securing success. Relying on guesswork leads to damaged freight. Track these specific indicators:

• Burst Strength: This determines the maximum force the bag withstands before rupturing. It is usually measured in PSI (Pounds per Square Inch).

• PSI Retention: This measures sustained internal pressure over the entire transit time. A slight pressure drop over weeks at sea causes catastrophic load shifts.

• Coefficient of Friction: The bag surface must grip container walls and packaging tightly. High friction prevents the bag from sliding vertically out of the void gap during transit.

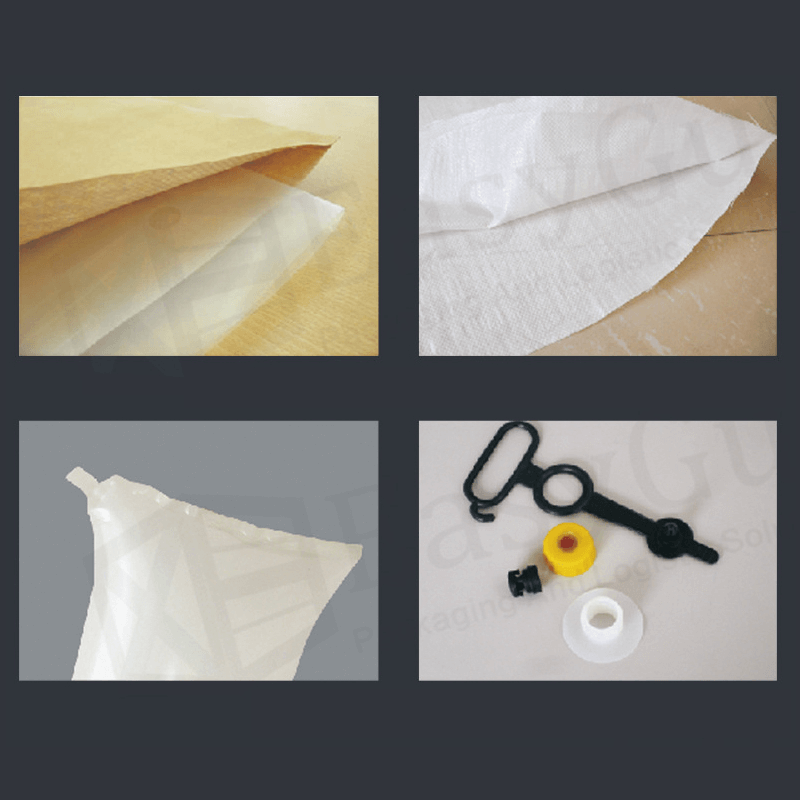

Material Evaluation: Kraft Paper vs. Polywoven

Kraft Paper Dunnage Air Bags

You must match the bag material to the specific shipping environment. A kraft paper dunnage air bag excels in dry, controlled environments. It provides highly rigid load securing. The rough paper exterior offers high friction against corrugated pallets. This prevents vertical slippage during bumpy truck transits. Manufacturers build these bags with multiple plies of paper. A 2-ply bag handles light truck loads, while an 8-ply bag secures heavy rail shipments.

However, kraft paper has strict operational limitations. It remains highly vulnerable to ambient moisture. High humidity during long ocean transits degrades paper strength rapidly. Container rain—condensation forming on the ceiling and dripping onto the cargo—will destroy a paper bag. It also offers lower puncture resistance compared to woven plastics. Splinters or exposed pallet nails easily pierce the outer paper shell.

Polywoven Dunnage Bags

Polywoven alternatives solve severe environmental challenges. They utilize tightly woven polypropylene threads. These bags dominate high-moisture environments completely. They are mandatory for refrigerated containers (reefers) and deep ocean freight. They handle heavy loads requiring maximum burst strength. The flexible woven shell conforms easily to irregular cargo shapes.

Their main limitation involves surface friction. Smooth polywoven surfaces may slide against shrink-wrapped pallets if not properly sized or positioned. You must ensure the void gap is tight enough to hold the bag in place through compression alone.

Versatility Across Cargo Types

Material flexibility dictates versatility across different freight profiles. Standard palletized goods require flat, uniform pressure distribution. Cylindrical loads like steel drums, IBC totes, or paper rolls require different handling. The bags must wrap around curved surfaces without creasing. Polywoven materials generally conform better to these irregular geometries. Kraft paper remains ideal for perfectly square, uniform pallet loads.

AAR Level Classifications

You must understand AAR Level Classifications for compliance. The Association of American Railroads defines strict performance standards. Using uncertified bags on rail networks guarantees rejected loads and heavy fines.

• Level 1: Secures lighter loads in standard highway trucks and intermodal containers. Maximum void is typically 12 inches.

• Level 2 & 3: Handles progressively heavier gross weights in railcars. Designed for lateral void filling.

• Level 4 & 5: Secures massive industrial loads. These high-level bags secure heavy paper rolls, metal coils, or dense machinery in railcars and ocean containers. They operate at much higher internal PSI.

Calculating the Correct Dunnage Air Bag Size

Measuring the Void Gap

Precision sizing prevents dangerous cargo shifting. You must measure the void gap accurately before selecting a bag. Guessing dimensions on the loading dock leads to failure. Follow this exact sequence to determine the correct dunnage air bag size:

1. Measure the lateral void width between the cargo units. Do this after the pallets are fully loaded and pushed into position.

2. Measure the vertical void height from the floor to the top of the load.

3. Measure the depth of the cargo facing to ensure the bag will not protrude past the pallets.

These specific dimensions dictate the exact bag you require for safe transit. A 12-inch void requires a significantly different bag than a 4-inch void.

Height and Adequate Load Support

The bag height must closely match the cargo height. This provides adequate load support across the entire freight face. Short bags allow top-heavy pallets to tip forward over the void fill during hard braking. Tall bags extending above the cargo provide zero securing value. They simply waste material and risk puncture from container roofs or overhead loading equipment.

The Contact Area Rule

The contact area rule governs all pneumatic securing. The bag must have sufficient surface contact with the cargo. This distributes pneumatic pressure evenly across the freight. Small contact areas concentrate force dangerously. This concentrated force easily crushes fragile packaging or bends metal framing. Maximum surface contact ensures maximum load stability. As a general rule, the bag should cover at least 70% of the cargo face.

Risks of Improper Sizing

Improper sizing introduces severe operational risks. Undersizing causes spherical bulging during inflation. The bag rounds out like a balloon instead of pressing flat against the pallets. This drastically reduces the critical contact area. The bag will eventually burst under dynamic load shifting. Oversizing creates different hazards. Excess material folds or creases within the void gap. These creases create weak points in the internal bladder. They cause uneven pressure distribution and premature deflation.

Placement Strategies for Container Cargo Shipping

Orientation and Load Dynamics

Orientation dictates load dynamics and securing efficiency. You cannot just throw a bag into a gap and inflate it. Crosswise placement positions the bag horizontally across the container width. This setup dampens lateral vibration effectively. It stabilizes side-to-side movement during rough transits. Lengthwise placement positions the bag parallel to the container walls. This orientation excels at impact cushioning. It prevents forward and backward shifting. This is mandatory during sudden truck stops or violent railcar coupling.

Clearance and Elevation Rules

You must follow strict clearance and elevation rules during loading. Keep bags at least two inches off the container floor. This prevents friction wear from floor debris, stray nails, or pallet dragging. Ensure bags do not extend above the cargo height. Exposed bag tops risk puncture from overhead cranes or shifting top-loads. Proper elevation ensures the bag applies pressure only where needed.

Buffer Zones

Buffer zones protect the vulnerable pneumatic bladder. You must use corrugated sheets or protective barriers. Place these barriers between the bag and any sharp edges. They protect against rough pallets, exposed nails, and irregular cargo geometries. A single wood splinter can destroy the strongest container dunnage air bag. Protective buffers guarantee the bag survives the entire journey intact. Always inspect the pallet facing before inserting the bag.

Inflation Systems and Pressure Management

Choosing the Right Inflator

Controlled inflation prevents catastrophic bag failures. You must select the right dunnage bag inflator for your specific operation. Portable battery-operated inflators offer maximum dock mobility. They allow dockworkers to move freely inside deep 53-foot shipping containers without dragging hoses. Airline-connected systems provide continuous, high-volume air. They fill large bags much faster, which is ideal for high-throughput docks. However, trailing air hoses create tripping hazards on busy loading docks.

Valve Technology

Valve technology impacts operational efficiency directly. Standard valves work adequately for small, low-pressure bags. High-flow Venturi valves pull in ambient air alongside compressed air. This drastically increases inflation speed for large void fills. Venturi valves also facilitate rapid deflation. This allows receivers to remove bags quickly and safely without cutting them. Cutting bags with box cutters often leads to accidental product damage.

Mitigating Over-Inflation Risks

Mitigating over-inflation risks is absolutely critical. Dockworkers often overfill bags to make them look rigid. This eliminates the bag's ability to absorb shock. You must use inflators with built-in pressure regulators. Auto-shutoff features prevent operator error completely. They stop airflow the moment the bag reaches optimal PSI. This prevents catastrophic bag failure prior to transit. A Level 1 bag typically requires only 2.0 to 3.0 PSI. Exceeding this limit guarantees a blowout.

Implementation Risks and Operational Logistics

Reusability vs. Single-Use Logistics

Reusability introduces distinct logistical challenges. A reusable bag requires complex reverse logistics. Receivers must deflate, inspect, fold, and return the bags to the origin point. This demands strict tracking and handling protocols. If a receiver damages a reusable bag during unloading, the system breaks down. Single-use recyclable bags offer operational simplicity. Receivers simply deflate the bags and recycle the materials locally. You must weigh the logistical burden of tracking assets against your operational capabilities.

Operator Training

Operator training remains a major implementation hurdle. Dockworker adoption requires clear, hands-on instruction. You must train staff on proper sizing protocols. They must understand exact placement rules and elevation clearances. They must follow strict inflation procedures. Untrained operators routinely over-inflate bags or place them against sharp pallet edges without buffer zones. Proper training eliminates these common failure points. Conduct weekly audits on the loading dock to ensure compliance.

Supplier Reliability and Quality Assurance

Supplier reliability guarantees cargo safety. You must establish strict criteria for shortlisting suppliers. Demand proof of internal quality control. Review their batch burst testing protocols thoroughly. Ensure they offer custom sizes for unique freight profiles. Require transparent testing data, including ISO and AAR certifications. Reliable suppliers provide technical support for complex load planning. They help you engineer custom securing solutions for difficult cargo, rather than just shipping pallets of bags.

Conclusion

Choosing the right void fill requires strict calculation. It depends entirely on load weight, measured void space, and environmental transit conditions. It is never a generic purchasing decision. Start your procurement process logically. Filter suppliers for AAR certification first. Select the material based on the moisture profile of your shipping route. Match the bag dimensions to the maximum void gaps of your standard loads. Logistics managers must take immediate action to secure their freight.

• Audit your recent cargo damage reports to identify specific failure points in your current securing methods.

• Measure the standard void gaps in your most common container configurations to establish a baseline size requirement.

• Request sample bags and inflators from certified suppliers for a pilot test on your loading dock.

• Train your loading dock staff on proper placement, buffer zone usage, and pressure-regulated inflation techniques.

FAQ

Q: What is the maximum void gap a standard container dunnage air bag can safely fill?

A: Standard bags safely fill voids up to 12 inches. Larger voids require specialized oversized bags or the use of void fillers like corrugated panels alongside the bag. Exceeding the recommended void gap causes spherical bulging, reduces contact area, and significantly increases the risk of bag rupture during transit.

Q: Can a kraft paper dunnage air bag be reused for multiple shipments?

A: Generally, kraft paper bags are designed for single-use applications. The paper exterior degrades rapidly from moisture, humidity, and physical friction during transit. Reusing them risks catastrophic failure. If your operation requires reusability, heavy-duty polywoven bags with specialized deflation valves are the appropriate choice.

Q: How do I determine what AAR level of cargo securing dunnage air bag my freight requires?

A: AAR levels depend on the gross weight of your cargo and the transit mode. Level 1 is for standard truck freight. Levels 2 and 3 handle heavier railcar loads. Levels 4 and 5 are engineered for massive industrial cargo like paper rolls or steel coils. Consult your supplier's AAR certification charts.

Q: Why is the height of the dunnage bag critical for adequate load support?

A: The bag height must match the cargo height to distribute pressure evenly across the entire face of the load. If the bag is too short, the upper portion of the cargo remains unsupported. This allows top-heavy pallets to tip forward over the bag during sudden stops.

Q: What are the operational consequences if a dunnage air bag is over-inflated?

A: Over-inflation eliminates the bag's ability to absorb kinetic energy. It becomes rigid, transferring shock directly to the cargo instead of cushioning it. Over-inflation also stresses the internal bladder seams, frequently leading to premature bursts before the container even leaves the loading dock.

Q: Do I need a specialized dunnage bag inflator, or can dockworkers use a standard air compressor?

A: You must use a specialized inflator. Standard air compressors lack the necessary high-volume airflow and precise pressure regulators. Specialized inflators feature auto-shutoff mechanisms and Venturi valves. These features prevent dangerous over-inflation and ensure the bag reaches the exact PSI required for safe transit.

Q: Are polywoven bags strictly better than kraft paper bags for ocean container shipping?

A: Yes. Ocean shipping exposes containers to extreme humidity, temperature fluctuations, and condensation (container rain). Kraft paper absorbs this moisture, losing structural integrity rapidly. Polywoven bags are highly moisture-resistant, ensuring they maintain their burst strength and securing capabilities throughout long international ocean voyages.
