Why Are Dunnage Air Bags Used in Rail Freight?

Rail freight exposes cargo to extreme longitudinal forces, shunting impacts, and continuous harmonic vibrations. These kinetic stressors make load shifting a primary driver of catastrophic product damage and rejected deliveries. Traditional rigid blocking and bracing methods, such as heavy lumber, frequently fail under the specific dynamic stress profiles of rail transport. They are labor-intensive, heavy, and prone to splintering upon heavy impact. This structural failure leads to high damage claims, costly rework, and severe compliance violations.

First introduced in the 1970s and continuously engineered for modern logistics, integrating dunnage air bags for rail freight mitigates these specific kinetic risks. They ensure compliance with rail authority standards and optimize loading dock operations. By replacing rigid force with dynamic shock absorption, these engineered inflatables lock loads in place. They conform to the unique shape of the cargo, filling voids completely. This prevents the initial movement that causes cascading load failure, protecting both the product and the transport vehicle.

Key Takeaways

• Dynamic Shock Absorption: Unlike rigid bracing, dunnage bags absorb and disperse the severe longitudinal impacts unique to railcar coupling and transit.

• Strict Compliance Requirements: Selecting the correct Association of American Railroads (AAR) level rating is mandatory for regulatory compliance, load safety, and avoiding transit fines.

• Material Selection Matters: Choosing between a kraft dunnage air bag for trains and woven polypropylene depends on load weight, moisture exposure, and puncture risk.

• Operational Efficiency: Standardizing inflation protocols and exact PSI targets reduces loading times, lowers labor costs, and minimizes the risk of deployment failure across retail distribution centers and industrial hubs.

The Physics of Rail Transport: Why Cargo Fails

Longitudinal Impacts and Shunting Forces

Rail transport generates physical forces rarely seen in over-the-road trucking. When railcars couple in a classification yard, they slam together. This creates massive longitudinal impacts. A railcar coupling at just 4 mph generates significant G-force, and at 6 mph, that force multiplies exponentially. These sudden shunting forces transfer directly into the cargo hold. If pallets are unsecured, this kinetic energy causes the load to telescope forward. Heavy items crush lighter items. Pallets slide across the floor, and stacks collapse. Rigid bracing often snaps under these sudden, violent impacts because wood lacks elasticity. It cannot absorb the shockwave. We see this constantly when inspecting failed loads. A standard wooden brace might hold against a steady push, but a sudden coupling impact shatters it instantly.

Harmonic Vibration and Lateral Sway

Beyond sudden impacts, trains produce continuous low-frequency harmonic vibrations. As steel wheels roll over steel tracks, the resulting vibration travels upward into the railcar. Over hundreds or thousands of miles, this constant shaking degrades traditional rigid bracing. Nails pull loose. Wood compresses and splinters. This degradation creates micro-voids between the pallets and the bracing. Once a micro-void exists, lateral sway from curved tracks exacerbates the problem. The cargo begins to rock back and forth. This movement rapidly expands the micro-voids into macro-shifting, eventually leading to total load failure. You can often hear this happening in the yard—the rhythmic banging of loose pallets against steel walls.

Slack Action in Long Trains

Another unique kinetic stressor is slack action. A freight train can be over a mile long, and the couplers connecting the cars have a small amount of play, or "slack." When a locomotive accelerates, it pulls the slack out of each coupler sequentially. This sends a violent jerking motion down the entire length of the train. When the train brakes, the cars crash into each other as the slack compresses. This push-pull action happens continuously over a long journey. Cargo must be secured with a method that can absorb both the push and the pull without losing its structural integrity.

The Cost of Inadequate Securing

Failing to secure rail cargo properly carries severe financial penalties. Direct freight damage claims are only the beginning. When a load shifts, receiving facilities often reject the entire shipment. You must then pay for return transit, rework labor, and disposal fees for ruined products. Furthermore, rail authorities conduct random inspections. If they deem a load unsafe due to inadequate securing, they will sideline the railcar. This results in hefty non-compliance fines and massive supply chain delays. Investing in proper securing methods prevents these compounding financial losses.

How a Cargo Gap Filling Dunnage Air Bag Solves Rail-Specific Challenges

Void Reduction and Load Restraint

The core function of a cargo gap filling dunnage air bag is eliminating empty space. By sliding an uninflated bag into the void between pallets and inflating it, you create a solid bulkhead. The bag expands to fill the exact contour of the gap. This locks the pallets tightly against the railcar walls and doors. By removing the empty space, you eliminate the runway cargo needs to gain momentum. If the cargo cannot take that first inch of movement, it cannot generate the kinetic energy required to collapse.

Shock Absorption vs. Rigid Bracing

Compressed air possesses natural elasticity. When a railcar experiences a severe coupling impact, an inflated bag compresses slightly to absorb the shock. It acts like a heavy-duty shock absorber. Once the kinetic energy dissipates, the bag immediately recovers its original shape. It maintains constant, active pressure against the load. Rigid bracing, such as lumber or steel bars, cannot do this. Wood absorbs impact by breaking. Once a wooden brace snaps, it offers zero remaining restraint for the rest of the journey. Air bags survive the impact and continue working.

Load Distribution

Straps and wooden cross-beams apply restraining force to very narrow, localized areas. This concentrated pressure often crushes fragile packaging or damages the edges of the product. Dunnage bags solve this by distributing the restraining force across a massive surface area. The bag presses evenly against the entire face of the pallet. This wide distribution of pressure secures heavy loads without crushing delicate outer packaging. It ensures that the structural integrity of the pallet remains intact from origin to destination.

Industry-Specific Applications

High-volume shippers rely heavily on these inflatable solutions. Paper mills use heavy-duty bags to secure massive, multi-ton paper rolls that would otherwise roll and destroy a boxcar. Food and beverage distributors use them to stabilize top-heavy pallets of liquid goods, preventing glass breakage and liquid spills. Chemical manufacturers use them to secure IBC totes, ensuring hazardous materials do not shift and puncture during transit. In each scenario, the bags provide customized, reliable restraint tailored to the specific weight and shape of the cargo.

Evaluating Intermodal Dunnage Air Bags: Material and Level Specifications

Material Selection: Kraft vs. Woven Polypropylene

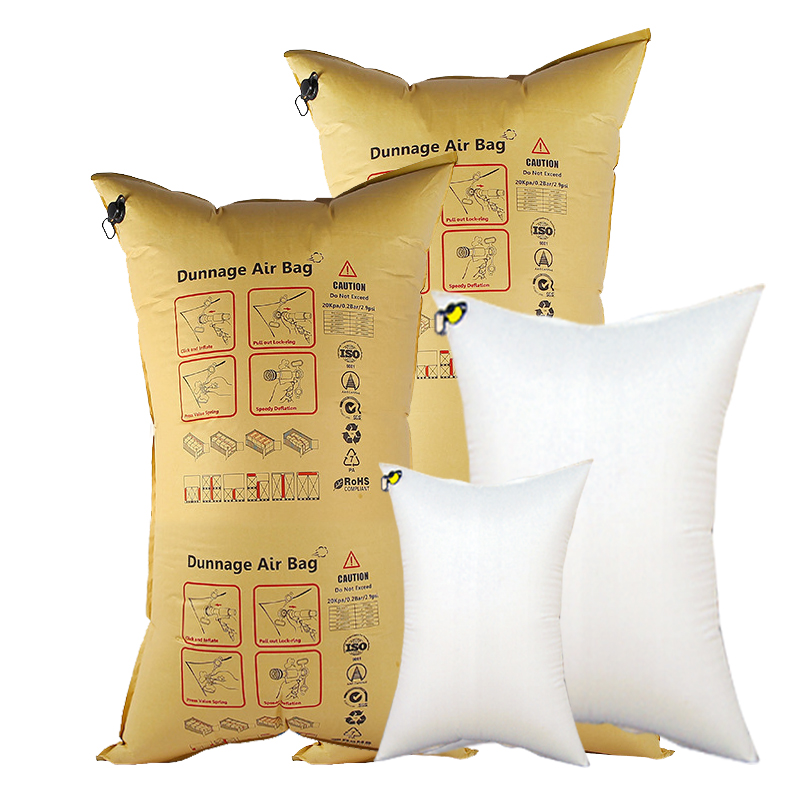

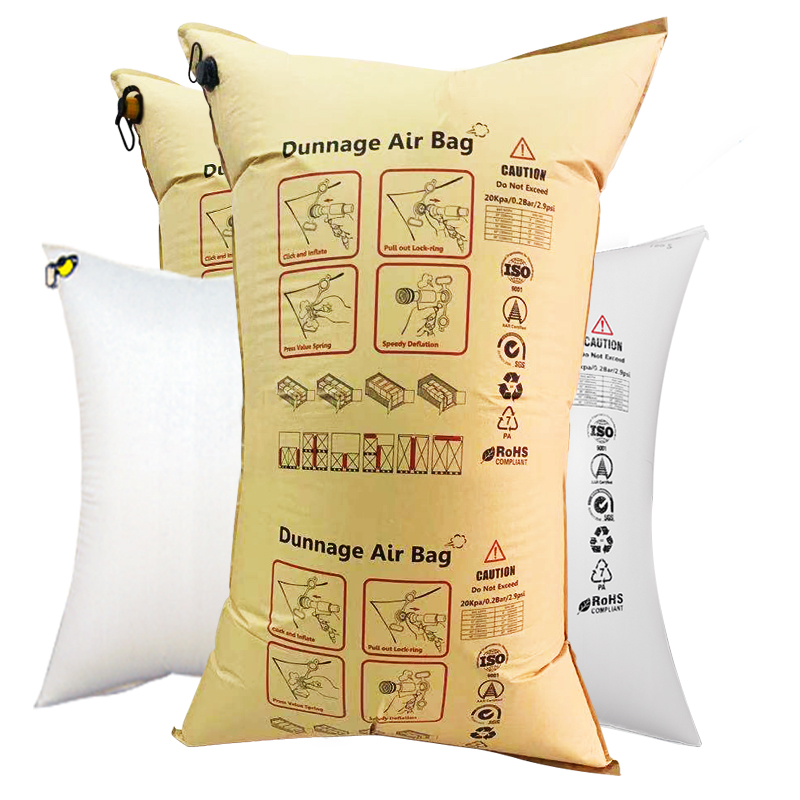

Choosing the right exterior material is critical for performance. A kraft dunnage air bag for trains features multiple layers of heavy-duty kraft paper over a polyethylene inner bladder. Kraft paper offers exceptionally high surface friction. This friction grips the pallets and railcar walls, locking the bag firmly in place. It is highly rigid and cost-effective for dry environments. However, paper degrades when wet. For refrigerated railcars or high-humidity routes, woven polypropylene bags are superior. Poly bags resist moisture entirely. They also offer higher puncture resistance against rough wooden pallets and protruding nails.

AAR Level Ratings

The Association of American Railroads (AAR) strictly regulates cargo securing. They classify dunnage bags into specific levels based on burst strength and load capacity. You must match the AAR level to your cargo weight. Using an under-rated bag violates safety protocols and guarantees load failure. The testing process for these ratings is rigorous, involving simulated coupling impacts and static pressure tests to ensure the bladder and outer shell can withstand extreme yard conditions.

Seamless Intermodal Transitions

Modern logistics rarely rely on a single transport mode. Cargo often moves from a rail chassis to an oceangoing vessel, and finally to an over-the-road truck. Intermodal dunnage air bags excel in these complex supply chains. Because they secure the load within the ISO container itself, the cargo remains stable during modal transfers. Cranes can lift the container from a train and place it on a ship without anyone needing to open the doors and re-secure the load. This seamless transition drastically reduces port handling times.

Valve Technologies and Inflation Speeds

Loading dock efficiency depends heavily on inflation speed. Standard valves require operators to hold the inflator in place for extended periods, slowing down throughput. Modern fast-fill venturi valves change this dynamic. They pull in ambient outside air alongside the compressed air stream, inflating large bags up to three times faster. Many advanced valves also feature a spring-loaded locking mechanism. This prevents air from escaping when the operator disconnects the hose, ensuring the bag maintains its exact target pressure before the cap is sealed.

Sizing and Placement: Engineering the Load Plan

Calculating Void Sizes

Selecting the correct bag size dictates its effectiveness. You must measure the void between the pallets accurately. A standard rule is that the void should not exceed one-third of the bag's width. For example, if you have a 12-inch void, you need a bag at least 36 inches wide. If you place a narrow bag in a wide void, it will round out into a cylindrical shape upon inflation. A rounded bag loses surface contact with the cargo. It acts like a ball, easily slipping upward or downward during transit and rendering the restraint useless. For voids larger than 18 inches, you must use corrugated void fillers alongside the bag to reduce the gap.

Positioning Strategies

Proper placement prevents bag failure and cargo damage. Follow these strict positioning rules on the loading dock:

1. Measure the void space accurately before selecting the bag size to ensure maximum surface contact.

2. Keep the bag at least one inch above the deck to prevent friction damage from floor debris and moisture absorption.

3. Align the top of the bag flush with or slightly below the top of the cargo. If the bag extends above the load, it will balloon over the top, losing horizontal pressure.

4. Never use bags as a primary bulkhead against railcar doors. The doors are not designed to withstand concentrated pneumatic pressure and may bulge or fail.

5. Center the bag perfectly between the two faces of the cargo to ensure even pressure distribution across the pallets.

Buffer Materials and Air Quality

Pallets are inherently rough. Exposed nails, splintered wood, and sharp plastic edges easily puncture inflatable bladders. To mitigate this risk, you must use buffer materials. Slide corrugated cardboard sheets or specialized friction mats between the cargo face and the bag. These buffers create a smooth, protective barrier. They prevent sharp edges from digging into the bag during the continuous harmonic vibration of the train ride. Additionally, ensure your air compressor lines have water traps installed. Pumping moisture-laden air into a paper bag from the inside will cause the inner layers to degrade, leading to premature failure.

Implementation Risks and Operational Mitigation

The Danger of Over-Inflation and Under-Inflation

Proper pressure management is the most critical operational variable. Over-inflation creates immediate risks. Pumping too much air into the bag can crush fragile cargo, damage pallet structures, or cause the bag to burst violently. Conversely, under-inflation is equally dangerous. An under-inflated bag lacks the rigidity to lock the load. During transit, the cargo will shift, compressing the soft bag. The bag will then dislodge and fall to the floor. Once the bag drops, the cargo has free rein to move, leading to total load failure.

Environmental Factors: Altitude and Temperature

Air expands and contracts based on environmental conditions. Rail freight often crosses diverse climate zones and mountain passes. As a train climbs to a higher altitude, atmospheric pressure drops, causing the air inside the bag to expand. If the bag was over-inflated at sea level, it might burst in the mountains. Similarly, cold temperatures cause air to contract. A bag inflated in a hot warehouse in Texas will lose pressure when the train reaches freezing temperatures in Canada. You must adjust initial PSI targets based on the specific route profile to account for these physical changes.

Loading Dock Safety and Personnel Training

Human error is the leading cause of cargo securing solutions failing. Relying on an operator to guess when a bag is full leads to inconsistent results. You must implement standardized inflation tools. Equip your loading docks with inflator guns that feature built-in pressure regulators and auto-shutoff capabilities. Set these regulators to the exact PSI required by the AAR level of the bag. Document the load plan clearly with visual diagrams. Train your personnel to follow these diagrams precisely. Removing the guesswork ensures compliance with both AAR and OSHA safety regulations.

Financial Impact and Operational Savings

Material Costs vs. Labor Savings

Evaluating rail cargo securing dunnage bags requires looking beyond the initial unit price. While a heavy-duty AAR Level 4 bag requires an upfront investment, the labor savings are massive. Traditional lumber bracing requires workers to measure, cut, and nail heavy wood inside a cramped railcar. This process takes hours. In contrast, an operator can position and inflate a dunnage bag in under two minutes. This drastic reduction in labor hours accelerates loading dock turnaround times, allowing facilities to ship more freight with the same headcount.

Reduction in Freight Damage Claims

The primary financial benefit comes from risk mitigation. A single catastrophic load shift in a railcar can destroy tens of thousands of dollars worth of product. It also incurs fines, rework labor, and damaged customer relationships. By completely filling the void and absorbing kinetic impacts, proper inflatable securing prevents these disasters. Preventing just one major damage claim typically pays for an entire year's supply of securing materials. The financial return is immediate and measurable through a reduction in rejected deliveries.

Sustainability and Disposal

End-of-life disposal impacts operational costs. Kraft paper bags offer strong sustainability benefits. Once the shipment arrives, receiving personnel can easily puncture the bag, remove the thin inner polyethylene bladder for plastic recycling, and recycle the heavy outer paper shell with standard cardboard waste. Woven polypropylene bags require different handling. While they are highly durable and moisture-resistant, they must be routed to specific industrial plastic recycling streams. Choosing the right material aligns your securing strategy with your corporate sustainability goals and local waste management capabilities.

Conclusion

Dunnage air bags are a non-negotiable component for securing high-value or heavy rail freight. Their unique ability to absorb dynamic longitudinal impacts and continuous vibrations prevents the catastrophic load shifts that destroy rigid bracing. By filling voids completely, they lock pallets in place and ensure compliance with strict rail authority regulations. Base your procurement decisions strictly on AAR level requirements for your specific load weight, the maximum void size in the railcar, and the environmental conditions of your transit route.

• Audit your current rail damage claims to identify specific failure points and recurring shifting patterns.

• Measure the average void spaces in your typical railcar shipments to determine the exact bag dimensions required.

• Upgrade your loading dock equipment to include auto-shutoff inflators calibrated to precise PSI targets.

• Pilot a standardized bag placement protocol using corrugated buffer materials to protect against pallet punctures.

FAQ

Q: What is the best dunnage bag for rail freight?

A: The best bag depends on the cargo weight and environment. Heavy-duty kraft paper bags are excellent for dry environments due to their high friction. For refrigerated railcars or high-humidity routes, woven polypropylene bags are superior because they resist moisture and offer high puncture strength.

Q: How do you determine the correct AAR level for rail cargo securing dunnage bags?

A: You determine the AAR level strictly by the total weight of the cargo being secured. Level 1 is for lightweight loads under 44,000 lbs, while Level 4 or 5 is required for extreme weights like paper rolls or primary metals exceeding 160,000 lbs.

Q: Can you reuse dunnage air bags in rail transport?

A: While some lower-level bags are marketed as reusable for light truck transit, AAR regulations generally prohibit reusing bags for heavy rail freight. The extreme forces experienced during rail transit compromise the structural integrity of the bladder, making reuse a severe safety risk.

Q: What is the maximum void size an intermodal dunnage air bag can safely fill?

A: A bag should generally not fill a void larger than one-third of its total width. For most standard bags, the maximum safe void is 12 to 18 inches. For voids larger than this, you must use corrugated void fillers alongside the bag to prevent rounding and slippage.

Q: How much pressure (PSI) should be in a rail dunnage bag?

A: The required PSI depends entirely on the AAR level of the bag. Level 1 bags typically require around 2 to 3 PSI, while Level 4 or 5 bags may require up to 10 PSI. Always use an auto-shutoff inflator set to the manufacturer's exact specifications.

Q: How do altitude and temperature changes affect dunnage bags on trains?

A: Air expands at high altitudes and contracts in cold temperatures. A bag inflated at sea level may burst when crossing mountain passes due to pressure expansion. Conversely, bags inflated in hot climates will lose pressure in freezing environments. You must adjust initial inflation targets to account for these route variables.
